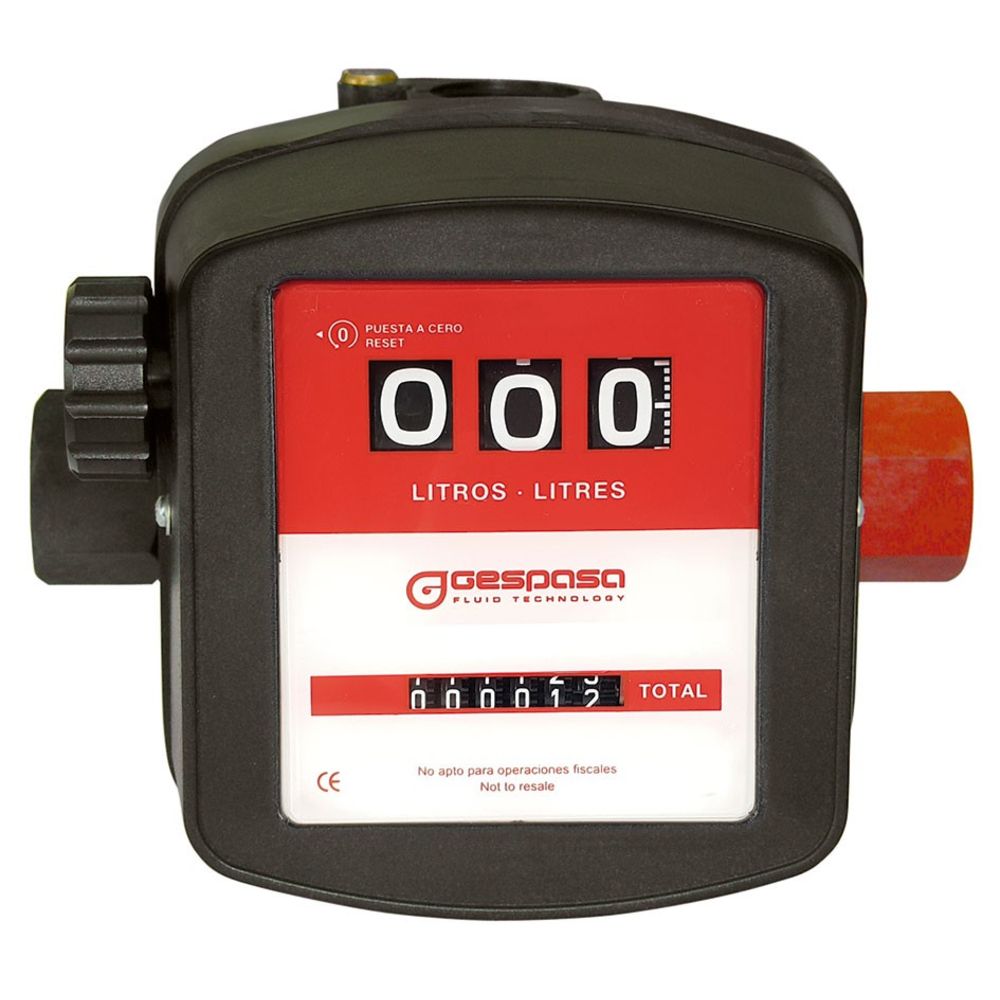

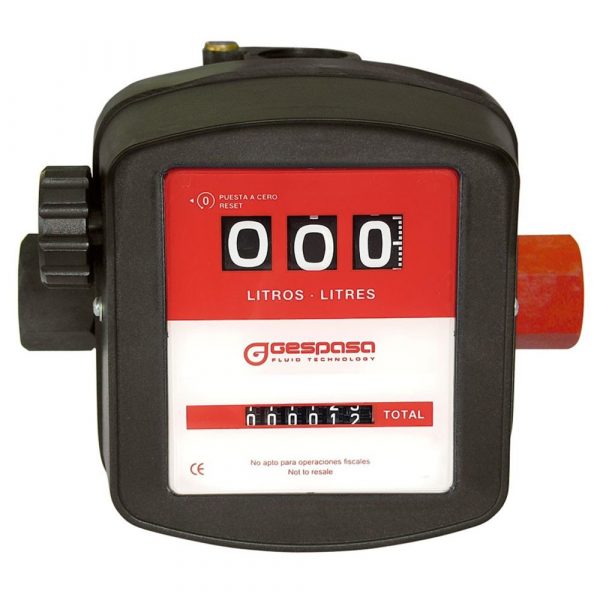

MG-80 · Mekanisk

  • Fireproof measuring chamber with oscillant disc
  • Flow: 10-90 l/min
  • Accuracy: ±1 %
  • Partial indicator of 3 digits and totalizer of 6 digits
  • Maximum operation pressure: 3,5 bar
  • Maximum temperature: 60 ºC
  • Minimum temperature: -10 ºC
  • Polyamide + Fibreglass housing
  • Connection 1″ GAS (BSP) with 3 inlets and 2 outlets
  • It is supplied with 2 additional Male/Female 1″ GAS (BSP) adapters (other threads under order). The 1″ GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
  • It is suitable for hydrocarbon liquid (please, consult other liquids).
  • For private use, not suitable for fiscal operations
