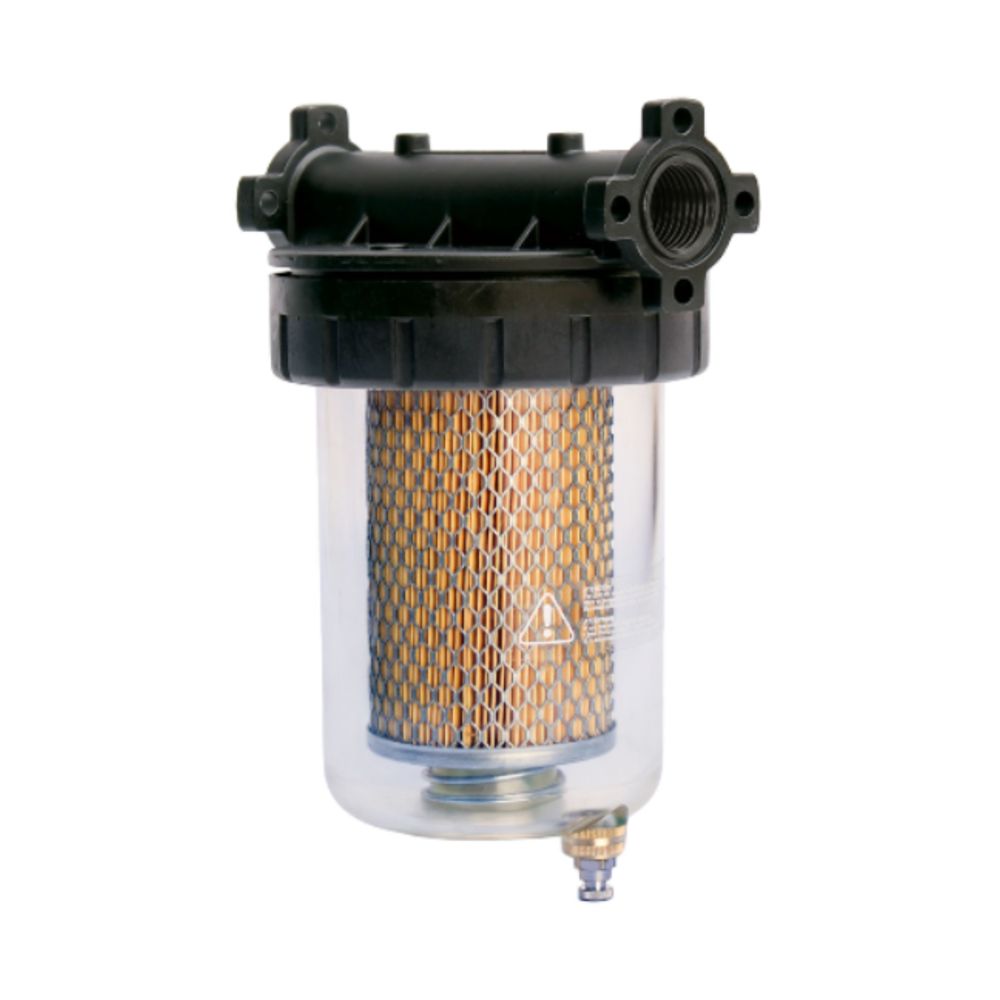

Mikrofilter FG-100 105L/Min 5 µm

  • Diesel & Petrol Filtration: 5 µm (micron)
  • Biodiesel Filtration: 25 µm (micron)
  • Water decanter: by water repellent filtering paper, with water decanting of 93 % (FG-100 & FG-100G)
  • Capacity: 2 litres
  • Transfer capacity: 105 l/min
  • Upper microfilter housing: aluminium
  • Housing: transparent
  • Inlet / Outlet: F1″ BSP flanges or threads
  • Installation: On the pumping kit suction or delivery
  • Max. working pressure: 5 bar
  • Vessel breaking pressure: 8 bar
  • Max. working depressure: -0,5 bar
  • Temperature: -10 ºC · + 50 ºC
  • Drain valve
  • Box Dim.: 190x230x330 mm (length x width x height)
  • Box gross weight: 2.72 kg



  • IT IS SUPPLIED WITH
  • Housing (vessel) + filtering cartridge + Key for a QUICK replacing of the filtering cartridge, unscrewing its ring.
