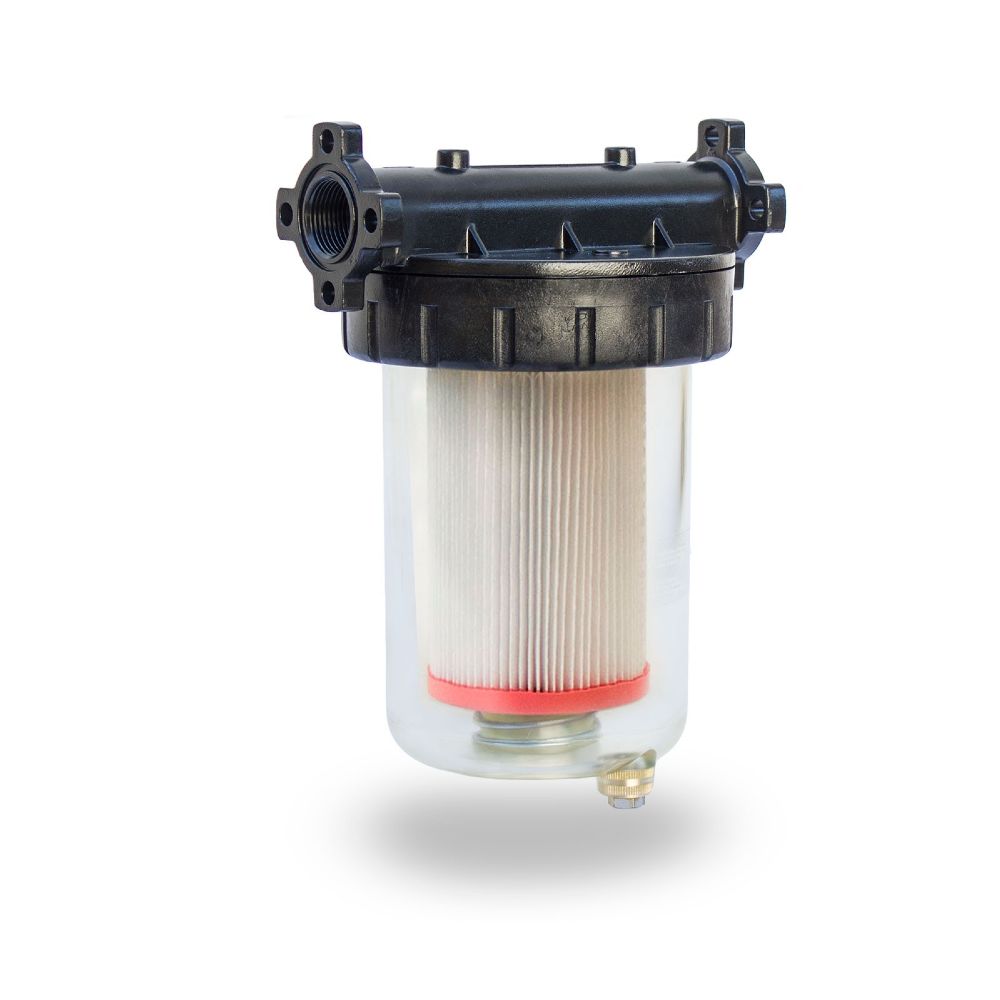

Mikrofilter FG-100 BLUE 25 µm,105 l/min
TECHNICAL DATA
- AdBlue/DEF filtration: 25 μm (micron)
- Maximum transfer capacity: 105 l/min
- Top microfilter housing: Anodised aluminium
- Vessel: Transparent plastic
- Inlet/Outlet: F1″ BSP flanges or threads
- Installation: in the suction or delivery of the pumping kit
- Max. working pressure: 5 bar
- Vessel breaking pressure: 8 bar
- Max. working depression: -0.5 bar
- Temperature: -5 ºC · + 35 ºC
- Box dim.: 190x230x330 mm (length x width x height)
- Gross box weight: 2.72 kg
- Microfilter dim.: Ø218×300 mm (diameter x height)
- Microfilter weight: 2.27 kg
IT IS SUPPLIED WITH
- Housing (vessel) + filtering cartridge + Key for a QUICK filtering cartridge replacing, unscrewing its ring
- Box dim.: 190x230x330 mm (length x width x height)
- Gross box weight: 2.72 kg
- Microfilter dim.: Ø218×300 mm (diameter x height)
- Microfilter weight: 2.27 kg
