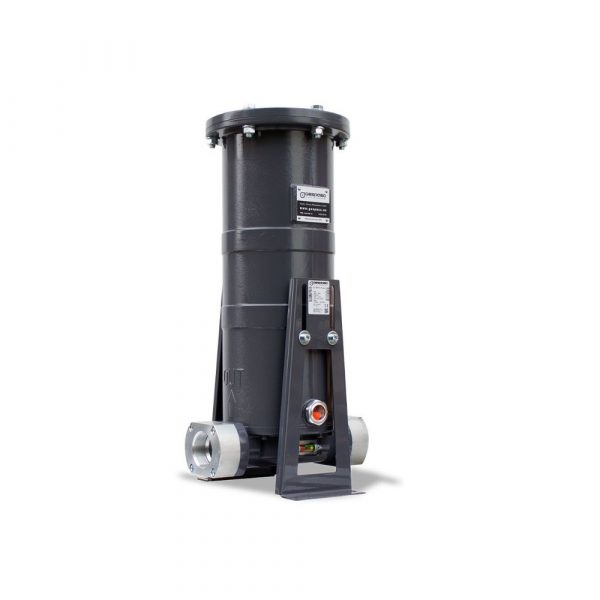

Mikrofilter FG-300m, 300 l/min

Technical features:

  • Filtration:
    • 3 µm (micron) · water absorbent (mod. FG-300/3)
    • 5 µm (micron) · water absorbent (mod. FG-300/5)
    • 15 µm (micron) · water absorbent (mod. FG-300/15)
    • 50 µm (micron) (mod. FG-300/50)
  • Capacity: 15 litres in the housing interior
  • Flow: 300 l/min
  • Microfilter cover and body: Aluminium
  • Differential manometer
  • Inlet / Outlet Connections: F2″ BSP or flange
  • Manual lower drain valve
  • Superior drain valve to eliminate the inner air of the filter
  • Installation: in the suction or delivery of the pumping kit
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar
  • Size: Ø254x312x670 mm (Ø x base x height)Weight: 17 kg
